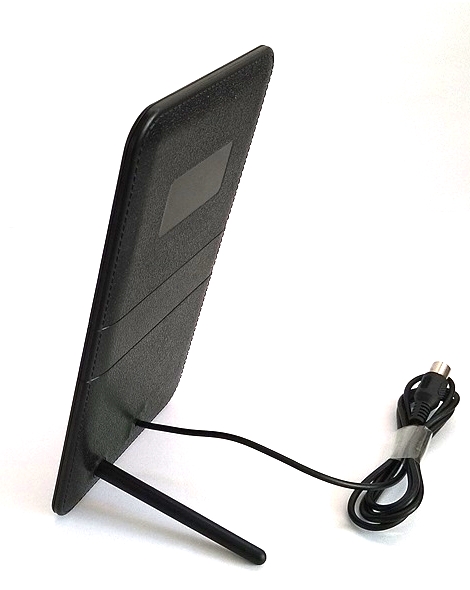

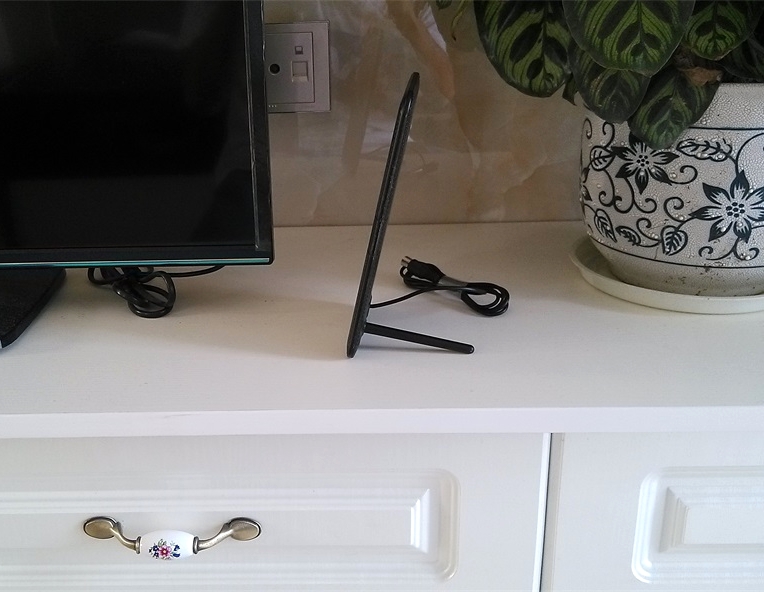

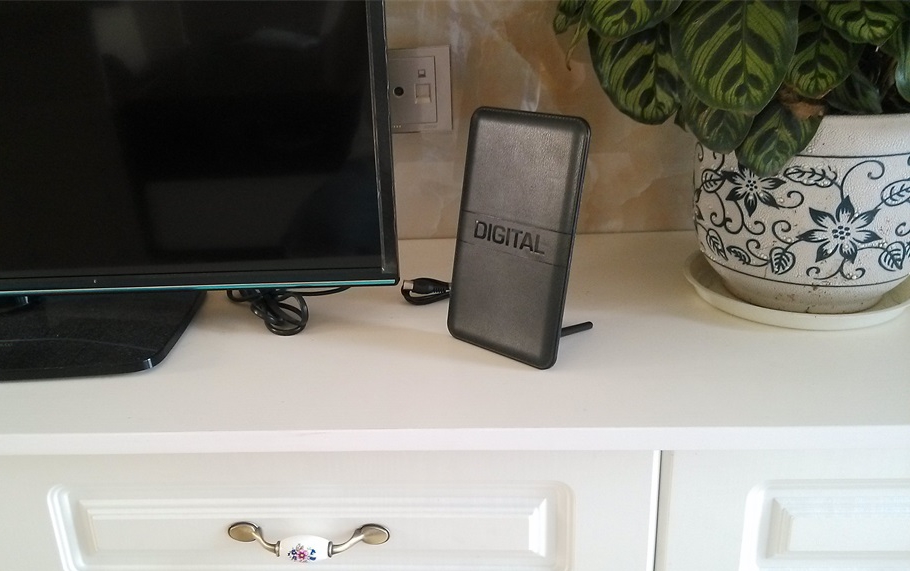

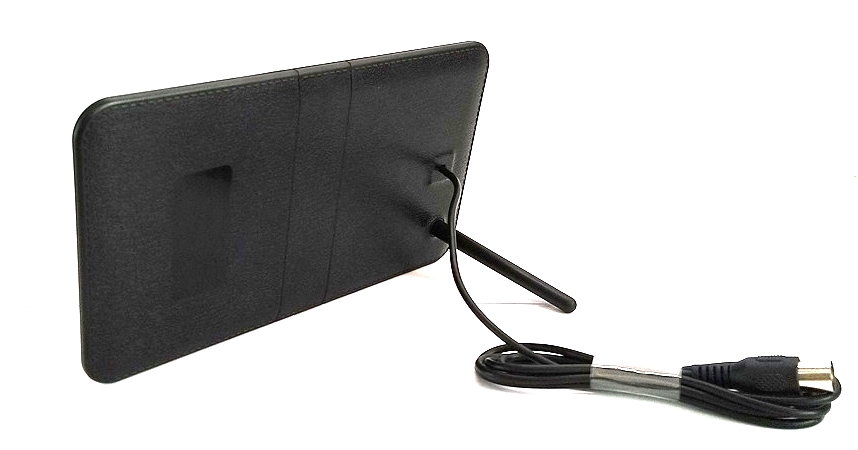

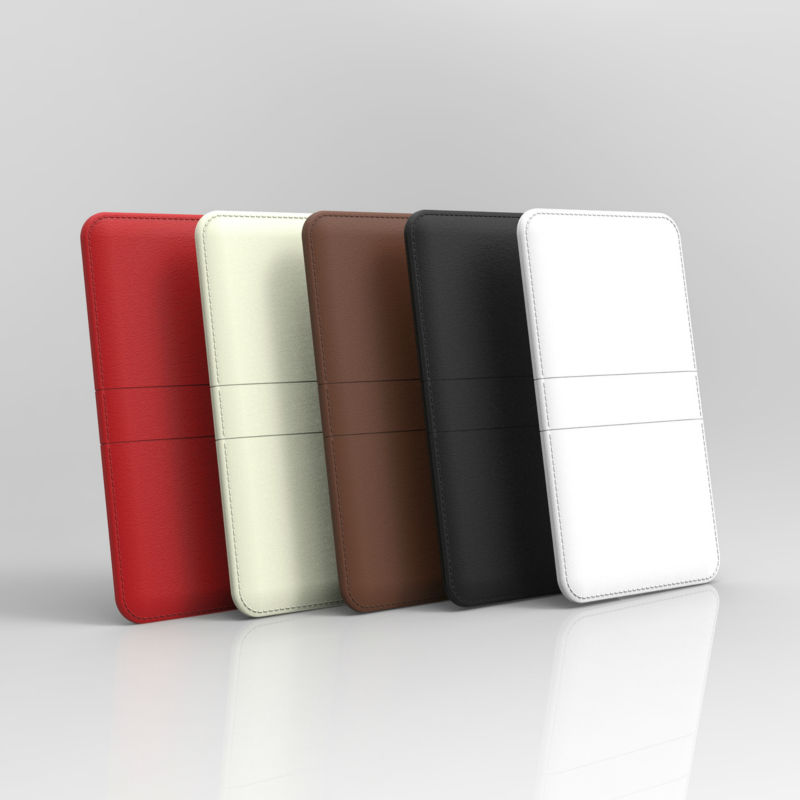

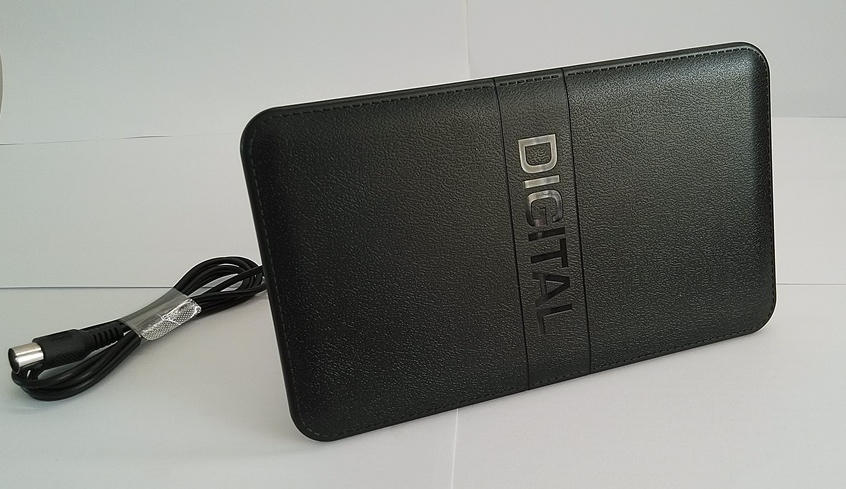

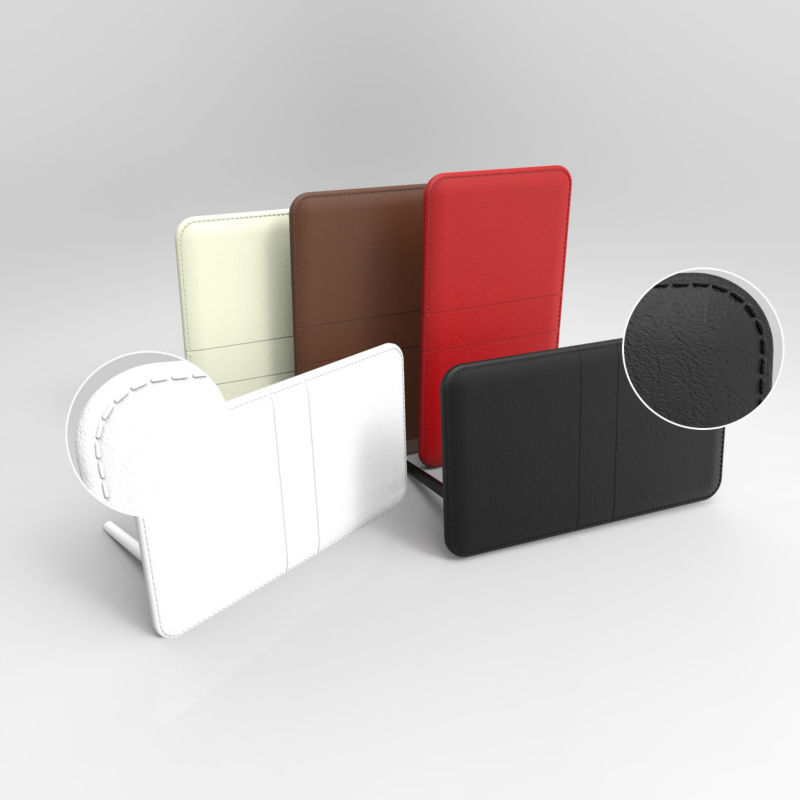

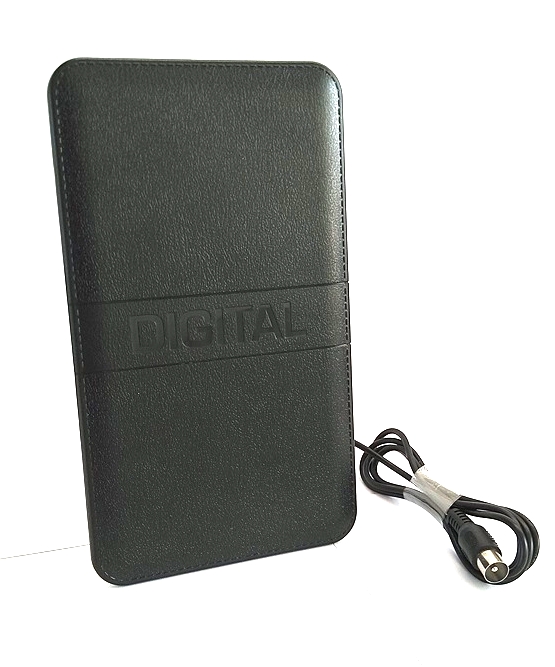

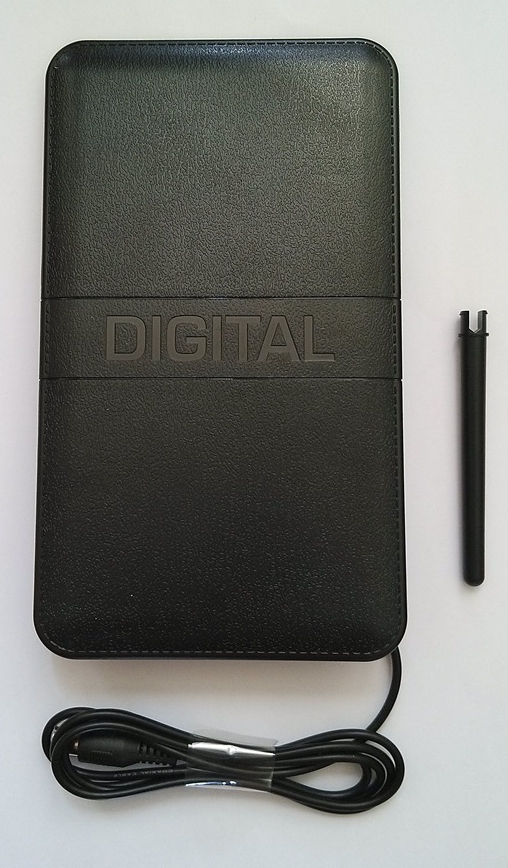

AV167
    AV167
    Specification:

    **Frequency range: VHF: 87.5-230MHz; UHF: 470-862MHz;
    **Gain: 14dB for 5V, 0dB for 12V;
    **Impedance: 75Ω
    **Noise Figure: ≤2.8dB
    **Power Supply: via DTV set-top box(DC 5V/38mA)
    **Current 5V – 38mA max 12V-12mA max
    **Sensitivity:17dBi
    **Antenna Gain:3dBi
    **Cable length:1.2M,1.5c02v 75Ohm ,OD3.0

    •Package :
    65PCS/CTN
    35035pcs/20"   81956pcs/40"   88855pcs/40"HQ
